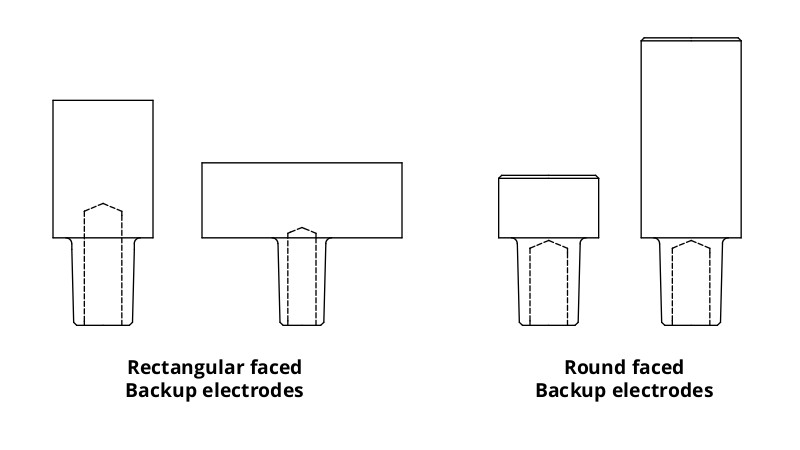

Backup Electrodes have a large weld face used for cosmetic or projection welds. The large weld face can also be used for heat balance when welding a stack up of different thicknesses. Backup Electrodes are available with the following weld face types:

  • Round
  • Rectangle
  • Square
PartDescription RWMA Material Type RWMA Taper Overall Length Weld Face Dimension Length of Body Unit of Measure
186-0304
304 TIP RWMA Class 1 - C15000 5RW 1.75000 0.875 0.6875 IN
186-0316
316 TIP RWMA Class 2 - C18200 5RW 2.87500 1 2.0000 IN
186-0315
315 TIP RWMA Class 2 - C18200 5RW 1.50000 1.5 0.6250 IN
186-0313
313 TIP RWMA Class 2 - C18200 5RW 1.50000 1.25 0.6250 IN
186-0312
312 TIP RWMA Class 1 - C15000 5RW 1.50000 1 0.6250 IN
186-0311
311 TIP RWMA Class 2 - C18200 5RW 1.50000 1 0.6250 IN
186-0310
310 TIP RWMA Class 1 - C15000 4RW 1.50000 1 0.6250 IN
186-0309
309 TIP RWMA Class 2 - C18200 4RW 1.50000 1 0.6250 IN
186-0308
308 TIP RWMA Class 1 - C15000 5RW 1.50000 0.875 0.6250 IN
186-0307
307 TIP RWMA Class 2 - C18200 5RW 1.50000 0.875 0.6250 IN
186-0306
306 TIP RWMA Class 1 - C15000 4RW 1.50000 0.875 0.6250 IN
186-0305
305 TIP RWMA Class 2 - C18200 4RW 1.50000 0.875 0.6250 IN
186-0220
220 TIP RWMA Class 2 - C18200 5RW 1.50000 1.0 x 0.625 0.6250 IN
186-0303
303 TIP RWMA Class 2 - C18200 5RW 1.75000 0.875 0.6875 IN
186-0302
302 TIP RWMA Class 1 - C15000 4RW 1.75000 0.875 0.6875 IN
186-0301
301 TIP RWMA Class 2 - C18200 4RW 1.75000 0.875 0.6875 IN
186-0229
229 TIP RWMA Class 2 - C18200 4RW 1.62500 1.5 x 0.625 0.7500 IN
186-0228
228 TIP RWMA Class 2 - C18200 5RW 1.62500 1.5 x 0.625 0.7500 IN
186-0227
227 TIP RWMA Class 2 - C18200 4RW 1.62500 2.0 x 0.625 0.7500 IN
186-0226
226 TIP RWMA Class 2 - C18200 5RW 1.62500 2.0 x 0.625 0.7500 IN
186-0225
225 TIP RWMA Class 2 - C18200 5RW 2.25000 1.0 x 1.0 1.3750 IN
186-0224
224 TIP RWMA Class 2 - C18200 5RW 1.62500 1.0 x 0.5 0.7500 IN
186-0223
223 TIP RWMA Class 2 - C18200 5RW 1.62500 1.0 x 0.5 0.7500 IN
186-0221
221 TIP RWMA Class 2 - C18200 5RW 1.62500 0.5 x 0.5 0.7500 IN
304 TIP 316 TIP 315 TIP 313 TIP 312 TIP 311  TIP 310 TIP 309 TIP 308 TIP 307  TIP 306 TIP 305 TIP 220 TIP 303  TIP 302 TIP 301 TIP 229 TIP 228 TIP 227 TIP 226 TIP 225 TIP 224 TIP 223 TIP 221 TIP
