Straight Holders

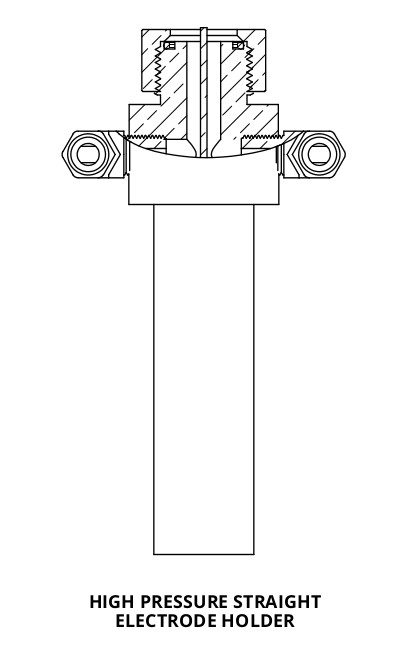

Tuffaloy High Pressure Straight Holder Header

High Pressure Straight holders are made for carrying Tuffaloy High Pressure Tips in rocker arm welders or press-type welders horn extensions. They are made in two basic sizes, to accommodate the Size 1 and 2 tips. The holders are made from RWMA Class 2 alloy and hold the via a threaded coupling.

Part Description RWMA Material Type Barrel Diameter PM Style Tip Engagement Overall Length Outer Diameter Barrel Length Unit of Measure
350-4511
4511 HI PRESSURE HOLD 1" RWMA Class 2 1 HP Size 1 5.13000 1.50000 3.500 IN
350-4512
4512 HI PRESS HOLD 1-1/4" RWMA Class 2 1.25 HP Size 1 5.13000 1.50000 3.500 IN
350-4513
4513 HI PRESS HOLD 1-1/2" RWMA Class 2 1.5 HP Size 1 5.13000 1.50000 3.500 IN
350-4521
4521 HI PRES HOLDER 1 1/4 RWMA Class 2 1.25 HP Size 2 5.31250 1.75000 3.500 IN
350-4522
4522 HI PRES HOLDER 1 1/2 RWMA Class 2 1.5 HP Size 2 5.31250 1.75000 3.500 IN
4511 HI PRESSURE HOLD 1" 4512 HI PRESS HOLD 1-1/4" 4513 HI PRESS HOLD 1-1/2" 4521 HI PRES HOLDER 1 1/4 4522 HI PRES HOLDER 1 1/2
