Metric Nut Bodies

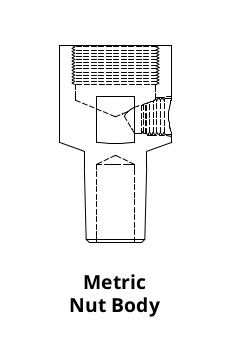

Tuffaloy Metric Nut Body Header

Metric Nut Bodies are designed with a air port for controlling the pin and a threaded end to hold weld head. The part is available in multiple mounting (RWMA tapers an threaded) configurations for a wide range of design flexibility.

Part Description RWMA Material Type Engagement to Holder Thread for Weld Head Overall Length Outer Diameter Unit of Measure Inlet for Airline
301-0004
TDH-25A BODY RWMA Class 2 - C18200 4RW M18 1.77000 1.00000 IN 1/8 NPT
301-0005
TDH-25C BODY RWMA Class 2 - C18200 5RW M18 1.97000 1.00000 IN 1/8 NPT
301-0006
TDH-25C-THD (5/8-11 THD) BODY RWMA Class 2 - C18200 5/8-11 M18 2.13000 1.00000 IN 1/8 NPT
301-0015
TDH-30A BODY RWMA Class 2 - C18200 5RW M22 1.97000 1.12500 IN 1/8 NPT
301-0020
TDH-35A BODY RWMA Class 2 - C18200 5RW M26 1.97000 1.25000 IN 1/8 NPT
TDH-25A BODY TDH-25C BODY TDH-25C-THD (5/8-11 THD) BODY TDH-30A BODY TDH-35A BODY
