Metric Nut Heads

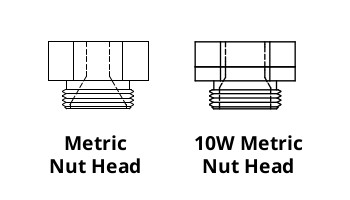

Tuffaloy Metric Weld Heads Header

Metric nut Heads are made from RWMA class 2 material that are an optimal cost consumable. Class 3 and 10W are available for longer life. With a concave seat the pin locates in the center of assembly when air is applied to the system. This gives you a repeatable location for automated nut feeders to introduce the nut to the environment.

The part is designed for use with Metric Nut Bodies.

Part	Description	Face Refractory Material	RWMA Material Type	Thread	Overall Length	Diameter	Hole Diameter	Refractory Material Thickness	Unit of Measure	Chamfer Angle at Base
175-8015	M15 15MM CAP		RWMA Class 2 - C18200	M26	0.67000	1.25	0.62800		IN	60.0
175-8015-10W	M15-10W 15MM CAP	RWMA Class 11 - 10W	RWMA Class 2 - C18200	M26	0.67000	1.25	0.62800	0.250	IN	60.0
175-8010	M10 10MM CAP		RWMA Class 2 - C18200	M22	0.67000	1.125	0.43200		IN	60.0
175-8014-10W	M14-10W 14MM CAP	RWMA Class 11 - 10W	RWMA Class 2 - C18200	M26	0.67000	1.25	0.58800	0.250	IN	60.0
175-8014	M14 14MM CAP		RWMA Class 2 - C18200	M26	0.67000	1.25	0.58800		IN	60.0
175-8013-10W	M13-10W 13MM CAP	RWMA Class 11 - 10W	RWMA Class 2 - C18200	M22	0.67000	1.125	0.55100	0.250	IN	60.0
175-8013	M13 13MM CAP		RWMA Class 2 - C18200	M22	0.67000	1.125	0.55100		IN	60.0
175-8012-10W	M12-10W 12MM CAP	RWMA Class 11 - 10W	RWMA Class 2 - C18200	M22	0.67000	1.125	0.51200	0.250	IN	60.0
175-8012	M12 12MM CAP		RWMA Class 2 - C18200	M22	0.67000	1.125	0.51200		IN	60.0
175-8011-10W	M11-10W 11MM CAP	RWMA Class 11 - 10W	RWMA Class 2 - C18200	M22	0.67000	1.125	0.47200	0.250	IN	60.0
175-8011	M11 11MM CAP		RWMA Class 2 - C18200	M22	0.67000	1.125	0.47200		IN	60.0
175-8010-10W	M10-10W 10MM CAP	RWMA Class 11 - 10W	RWMA Class 2 - C18200	M22	0.67000	1.125	0.43200	0.250	IN	60.0
175-8004	M4 4MM CAP		RWMA Class 2 - C18200	M18	0.67000	1	0.19700		IN	60.0
175-8009-10W	M9-10W 9MM CAP	RWMA Class 11 - 10W	RWMA Class 2 - C18200	M18	0.67000	1	0.39400	0.250	IN	60.0
175-8009	M9 9MM CAP		RWMA Class 2 - C18200	M18	0.67000	1	0.39400		IN	60.0
175-8008-10W	M8-10W 8MM CAP	RWMA Class 11 - 10W	RWMA Class 2 - C18200	M18	0.67000	1	0.35400	0.250	IN	60.0
175-8008	M8 8MM CAP		RWMA Class 2 - C18200	M18	0.67000	1	0.35400		IN	60.0
175-8007-10W	M7-10W 7MM CAP	RWMA Class 11 - 10W	RWMA Class 2 - C18200	M18	0.67000	1	0.34500	0.250	IN	60.0
175-8007	M7 7MM CAP		RWMA Class 2 - C18200	M18	0.67000	1	0.31500		IN	60.0
175-8006-10W	M6-10W 6MM CAP	RWMA Class 11 - 10W	RWMA Class 2 - C18200	M18	0.67000	1	0.27600	0.250	IN	60.0
175-8006	M6 6MM CAP		RWMA Class 2 - C18200	M18	0.67000	1	0.27600		IN	60.0
175-8005-10W	M5-10W 5MM CAP	RWMA Class 11 - 10W	RWMA Class 2 - C18200	M18	0.67000	1	0.23600	0.250	IN	60.0
175-8005	M5 5MM CAP		RWMA Class 2 - C18200	M18	0.67000	1	0.23600		IN	60.0
175-8004-10W	M4-10W 4MM CAP	RWMA Class 11 - 10W	RWMA Class 2 - C18200	M18	0.67000	1	0.19700	0.250	IN	60.0
