Metric Upper Electrode

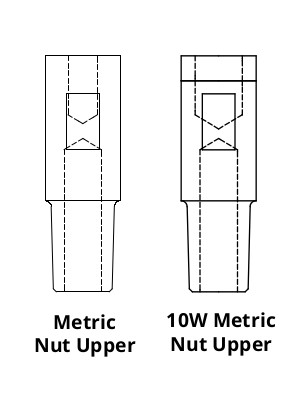

Tuffaloy Metric Electrodes for Uppers Header

Metric nut Upper electrodes are made from RWMA class 2 material and have an optional 10W for longer life. These electrodes are designed to receive the pin of Metric Nut Welding Assemblies.

They are available in a variety of bore and faces sizes to accommodate virtually any pin size.

Part Description Face Refactory Material RWMA Material Type Engagement to Holder Overall Length Weld Face Diameter Hole Diameter Hole Depth Refractory Material Thickness Unit of Measure
186-0101-10W
TNFD16-M5-16-3-10W 5mm UPPER ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 2.36000 0.625 0.19700 0.590 IN
186-0104-10W
TNFD20-M10-16-3-10W 10mm UPPER ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 2.36000 0.75 0.39400 0.590 IN
186-0103-10W
TNFD20-M8-16-3-10W 7.5mm UPPER ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 2.36000 0.75 0.29500 0.590 IN
186-0105-10W
TNFD20-M12-16-3-10W 12mm UPPER ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 2.36000 0.75 0.47200 0.590 0.250 IN
186-0102-10W
TNFD20-M6-16-3-10W 6mm UPPER ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 2.36000 0.75 0.23600 0.590 IN
186-0101
TNFD16-M5-16-3 5mm UPPER ELEC. RWMA Class 2 - C18200 5RW 2.36000 0.625 0.19700 0.590 IN
186-0102
TNFD20-M6-16-3 6mm UPPER ELEC. RWMA Class 2 - C18200 5RW 2.36000 0.75 0.23600 0.590 IN
186-0103
TNFD20-M8-16-3 7.5mm UPPER ELEC. RWMA Class 2 - C18200 5RW 2.36000 0.75 0.29500 0.590 IN
186-0104
TNFD20-M10-16-3 10mm UPPER ELEC. RWMA Class 2 - C18200 5RW 2.36000 0.75 0.39400 0.590 IN
186-0105
TNFD20-M12-16-3 12mm UPPER ELEC. RWMA Class 2 - C18200 5RW 2.36000 0.75 0.47200 0.590 IN
