RWMA Stud Electrodes

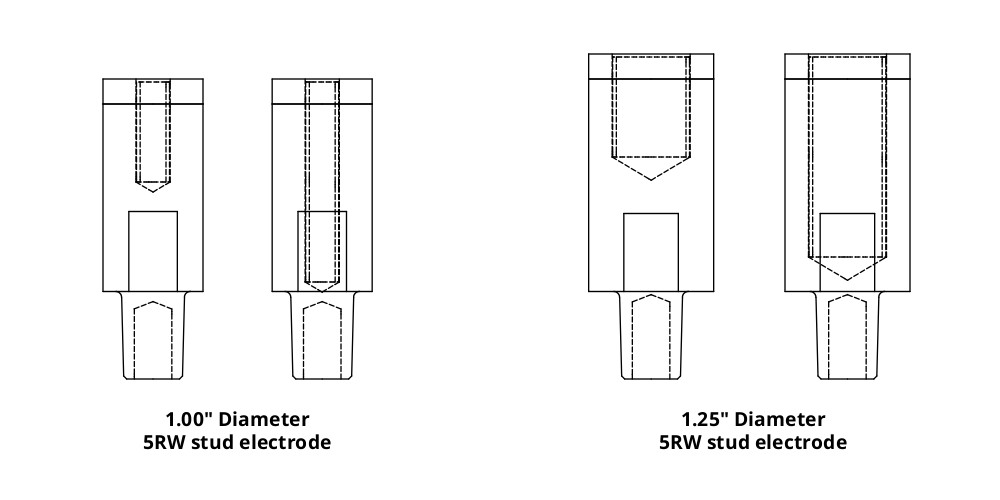

Tuffaloy RWMA Stud Electrodes Header

This series of Stud electrodes are made from RWMA Class 2 material with 10W (copper tungsten) on the weld face for longer life. The part has wrench flats for easy removal from holders.The insulator is made to withstand the constant friction that is applied as the stud is inserted and removed.

Part Description Face Refractory Material Base RWMA Material Type Engagement to Holder Overall Length Weld Face Diameter Bushing ID Bushing Depth For Srew Thread Size Refractory Material Thickness Unit of Measure
175-1313-40122-10W
1313-40122-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.25000 1.25 0.47900 1.000 12 mm 0.250 IN
175-1313-4422-10W
1313-4422-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.25000 1.25 0.77700 2.000 3/4 0.250 IN
175-1313-4421-10W
1313-4421-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.25000 1.25 0.77700 2.000 3/4 0.250 IN
175-1313-4412-10W
1313-4412-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.25000 1.25 0.69400 1.000 11/16 0.250 IN
175-1313-4411-10W
1313-4411-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.25000 1.25 0.69400 2.000 11/16 0.250 IN
175-1313-4402-10W
1313-4402-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.25000 1.25 0.65200 1.000 5/8 0.250 IN
175-1313-4401-10W
1313-4401-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.25000 1.25 0.65200 2.000 5/8 0.250 IN
175-1313-4392-10W
1313-4392-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.25000 1.25 0.56900 1.000 9/16 0.250 IN
175-1313-4391-10W
1313-4391-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.25000 1.25 0.56900 2.000 9/16 0.250 IN
175-1313-4382-10W
1313-4382-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.25000 1.25 0.50600 1.000 1/2 0.250 IN
175-1313-4381-10W
1313-4381-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.25000 1.25 0.50600 2.000 1/2 0.250 IN
175-1313-4372-10W
1313-4372-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.25000 1.25 0.44400 1.000 7/16 0.250 IN
175-1313-4371-10W
1313-4371-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.25000 1.25 0.44400 2.000 7/16 0.250 IN
175-0316-4006-10W
0316-4006-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.00000 1 0.24300 1.000 6 mm 0.250 IN
175-1313-4012-10W
1313-4012-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.25000 1.25 0.47900 2.000 12 mm 0.250 IN
175-0316-4062-10W
0316-4062-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.00000 1 0.38100 1.000 3/8 0.250 IN
175-0316-4061-10W
0316-4061-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.00000 1 0.38100 2.000 3/8 0.250 IN
175-0316-4052-10W
0316-4052-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.00000 1 0.31900 1.000 5/16 (8mm) 0.250 IN
175-0316-4051-10W
0316-4051-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.00000 1 0.31900 2.000 5/16 (8mm) 0.250 IN
175-0316-4042-10W
0316-4042-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.00000 1 0.25600 1.000 1/4 0.250 IN
175-0316-4041-10W
0316-4041-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.00000 1 0.25600 2.000 1/4 0.250 IN
175-0316-4032-10W
0316-4032-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.00000 1 0.21800 1.000 #10 0.250 IN
175-0316-4031-10W
0316-4031-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.00000 1 0.21800 2.000 #10 0.250 IN
175-0316-40102-10W
0316-40102-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.00000 1 0.40000 1.000 10 mm 0.250 IN
175-0316-4010-10W
0316-4010-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.00000 1 0.40000 2.000 10 mm 0.250 IN
175-0316-40062-10W
0316-40062-10W STUD ELEC. RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW 3.00000 1 0.24300 1.000 6 mm 0.250 IN
