Female Caps

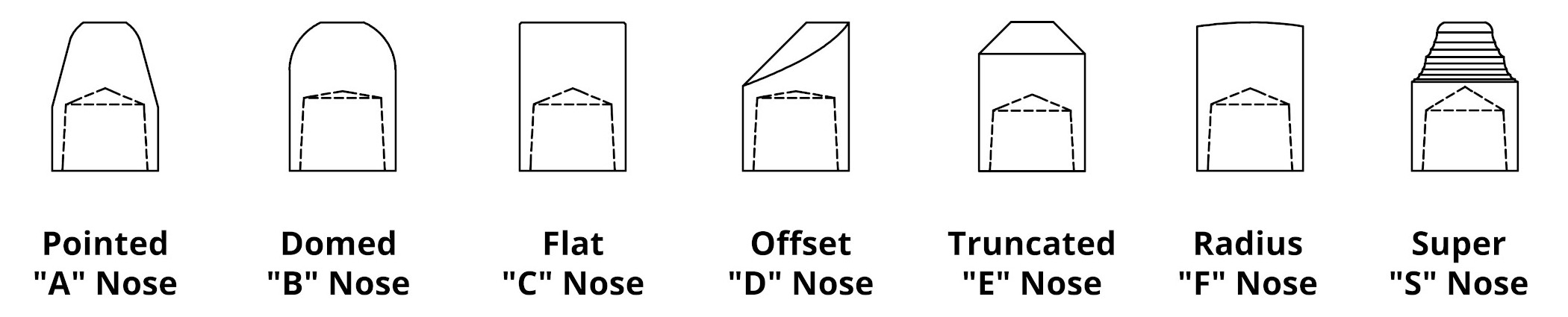

 Tuffaloy Female Caps Header

Tuffaloy Female Caps are available in a variety of materials and nose configurations to meet any design requirement. They are an ideal choice for automated or high production rate environements because the caps can be changed quickly when the weld face wears out.

Female caps are the most economical cap because they require less copper to manufacture than male caps.

Part Description RWMA Material Type RWMA Taper Nose Type Overall Length Outer Diameter Welding Face Dia. Unit of Measure Offset / Truncated Angle
126-0243
TP-24CZ TUFF CAP RWMA Class 2 - C18150 4RW Cap Taper C 0.84000 0.50000 0.5 IN
125-0266
TP-26F TUFF CAP RWMA Class 2 - C18200 6RW Cap Taper F 1.00000 0.75000 2.75 inch radius IN
125-0264
TP-26D TUFF CAP RWMA Class 2 - C18200 6RW Cap Taper D 1.00000 0.75000 0.28 IN 45.0
125-0751
MW-6183 (5/8" FEMALE CAP) TUFF CAP RWMA Class 2 - C18200 5RW Cap Taper A 0.63000 0.62500 0.25 IN
126-0241
TP-24AZ CuCrZr TUFF CAP RWMA Class 2 - C18150 4RW Cap Taper A 0.84000 0.50000 0.188 IN
126-0242
TP-24BZ CuCrZr TUFF CAP RWMA Class 2 - C18150 4RW Cap Taper B 0.84000 0.50000 0.188 IN
126-0251
TP-25AZ CuCrZr TUFF CAP RWMA Class 2 - C18150 5RW Cap Taper A 0.87500 0.62500 0.25 IN
126-0252
TP-25BZ CuCrZr TUFF CAP RWMA Class 2 - C18150 5RW Cap Taper B 0.87500 0.62500 0.25 IN
126-0252-.20
TP-25BZ-.20 TUFF CAP RWMA Class 2 - C18150 5RW Cap Taper B 0.87500 0.62500 0.188 IN
126-0253
TP-25CZ CuCrZr TUFF CAP RWMA Class 2 - C18150 5RW Cap Taper C 0.87500 0.62500 0.625 IN
126-0254
TP-25DZ CuCrZr TUFF CAP RWMA Class 2 - C18150 5RW Cap Taper D 0.87500 0.62500 0.25 IN 45.0
126-0261
TP-26AZ CuCrZr TUFF CAP RWMA Class 2 - C18150 6RW Cap Taper A 1.00000 0.75000 0.28 IN
126-0262
TP-26BZ CuCrZr TUFF CAP RWMA Class 2 - C18150 6RW Cap Taper B 1.00000 0.75000 0.28 IN
126-0262-.25
TP-26BZ-.25 CuCrZr TUFF CAP RWMA Class 2 - C18150 6RW Cap Taper B 1.00000 0.75000 0.25 IN
127-0241
TP-24SZ CuCrZr TUFF CAP RWMA Class 2 - C18150 4RW Cap Taper S 0.75000 0.50000 0.175 IN
127-0251
TP-25SZ CuCrZr TUFF CAP RWMA Class 2 - C18150 5RW Cap Taper S 0.87500 0.62500 0.236 IN
127-0261
TP-26SZ CuCrZr TUFF CAP RWMA Class 2 - C18150 6RW Cap Taper S 1.00000 0.75000 0.28 IN
125-0241
TP-24A TUFF CAP RWMA Class 2 - C18200 4RW Cap Taper A 0.84000 0.50000 0.188 IN
125-0263
TP-26C TUFF CAP RWMA Class 2 - C18200 6RW Cap Taper C 1.00000 0.75000 0.75 IN
125-0262-.25
TP-26B .25 TUFF CAP RWMA Class 2 - C18200 6RW Cap Taper B 1.00000 0.75000 0.25 IN
125-0262
TP-26B TUFF CAP RWMA Class 2 - C18200 6RW Cap Taper B 1.00000 0.75000 0.28 IN
125-0261
TP-26A TUFF CAP RWMA Class 2 - C18200 6RW Cap Taper A 1.00000 0.75000 0.28 IN
125-0256
TP-25F TUFF CAP RWMA Class 2 - C18200 5RW Cap Taper F 0.87500 0.62500 2 inch radius IN
125-0255
TP-25E FEMALE CAP RWMA Class 2 - C18200 5RW Cap Taper E 0.87500 0.62500 0.25 IN 45.0
125-0254
TP-25D TUFF CAP RWMA Class 2 - C18200 5RW Cap Taper D 0.87500 0.62500 0.25 IN 45.0
125-0253
TP-25C TUFF CAP RWMA Class 2 - C18200 5RW Cap Taper C 0.87500 0.62500 0.625 IN
125-0252-.20
TP-25B-.20 TUFF CAP RWMA Class 2 - C18200 5RW Cap Taper B 0.87500 0.62500 0.188 IN
125-0252
TP-25B TUFF CAP RWMA Class 2 - C18200 5RW Cap Taper B 0.87500 0.62500 0.25 IN
125-0251
TP-25A TUFF CAP RWMA Class 2 - C18200 5RW Cap Taper A 0.87500 0.62500 0.25 IN
125-0246
TP-24F TUFF CAP RWMA Class 2 - C18200 4RW Cap Taper F 0.84000 0.50000 2 inch radius IN
125-0244
TP-24D TUFF CAP RWMA Class 2 - C18200 4RW Cap Taper D 0.84000 0.50000 0.188 IN 50.0
125-0243
TP-24C TUFF CAP RWMA Class 2 - C18200 4RW Cap Taper C 0.84000 0.50000 0.5 IN
125-0242
TP-24B TUFF CAP RWMA Class 2 - C18200 4RW Cap Taper B 0.84000 0.50000 0.188 IN
