Refractory Metal Straight Tips

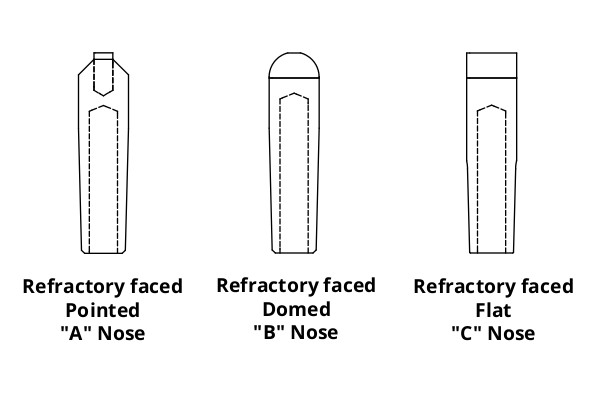

Tuffaloy Refactory Tips Header

Refractory metal tips are designed to withstand greater heat and pressure at the expense of some conductivity. They are used to spot weld high resistance base metals or to achieve desired heat balance when welding dissimilar materials, or for resistance brazing.

Part Description Face Refractory Material Base RWMA Material Type RWMA Taper Nose Type Overall Length Outer Diameter Welding Face Dia. Refractory Metal Thickness Unit of Measure
185-0120
A-2408-100M FACED TIP RWMA Class 14 - 100M RWMA Class 2 - C18200 4RW A 2.00000 0.50000 0.1875 0.375 IN
185-0130
A-2408-100W FACED TIP RWMA Class 13 - 100W RWMA Class 2 - C18200 4RW A 2.00000 0.50000 0.1875 0.375 IN
185-0150
A-2508-10W FACED TIP RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW A 2.00000 0.62500 0.25 0.375 IN
185-0160
A-2508-100M FACED TIP RWMA Class 14 - 100M RWMA Class 2 - C18200 5RW A 2.00000 0.62500 0.25 0.375 IN
185-0170
A-2508-100W FACED TIP RWMA Class 13 - 100W RWMA Class 2 - C18200 5RW A 2.00000 0.62500 0.25 0.375 IN
185-1110
B-2408-10W FACED TIP RWMA Class 11 - 10W RWMA Class 2 - C18200 4RW B 2.00000 0.50000 0.125 0.250 IN
185-1120
B-2508-10W FACED TIP RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW B 2.00000 0.62500 0.125 0.250 IN
185-1170
B-2508-100W FACED TIP RWMA Class 13 - 100W RWMA Class 2 - C18200 5RW B 2.00000 0.62500 0.125 0.250 IN
185-1210
C-2408-10W FACED TIP RWMA Class 11 - 10W RWMA Class 2 - C18200 4RW C 2.00000 0.50000 0.5 0.250 IN
185-1220
C-2408-100M FACED TIP RWMA Class 14 - 100M RWMA Class 2 - C18200 4RW C 2.00000 0.50000 0.5 0.250 IN
185-1230
C-2408-100W FACED TIP RWMA Class 13 - 100W RWMA Class 2 - C18200 4RW C 2.00000 0.50000 0.5 0.250 IN
185-1250
C-2508-10W FACED TIP RWMA Class 11 - 10W RWMA Class 2 - C18200 5RW C 2.00000 0.62500 0.625 0.250 IN
185-1260
C-2508-100M FACED TIP RWMA Class 14 - 100M RWMA Class 2 - C18200 5RW C 2.00000 0.62500 0.625 0.250 IN
185-1270
C-2508-100W FACED TIP RWMA Class 13 - 100W RWMA Class 2 - C18200 5RW C 2.00000 0.62500 0.625 0.250 IN
