Single Bend Electrodes

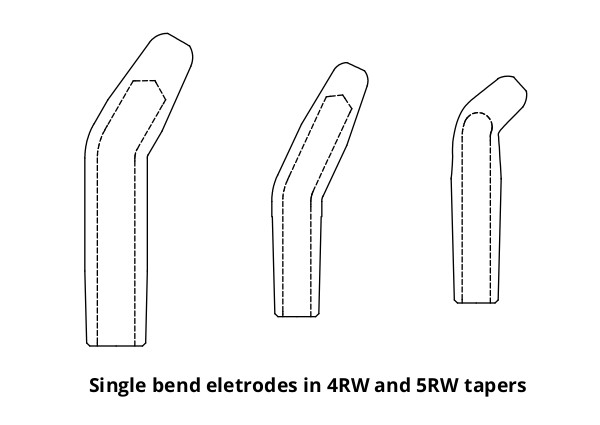

Tuffaloy Standard Single Bends Header

Standard Single Bend tips are an economic solution to weld in a tight area or hard to reach area such as a flange or corner.

For spot welding, it is critical that the tips meet in a straight line manner to prevent expulsion, most single bend electrodes are used in conjunction with an Angled Electrode Adapter or Angled Offset Holder.

Part Description RWMA Material Type RWMA Taper Nose Type Overall Length Outer Diameter Welding Face Dia. Offset Inner Diameter Unit of Measure Bend Angle (Deg)
167-4260
FP-2428-9.5 BENT TIP RWMA Class 2 - C18200 4RW A 2.50000 0.50000 0.188 0.5938 0.50000 IN 25.0
167-5055
FP-2423-7 BENT TIP RWMA Class 2 - C18200 4RW A 2.18750 0.50000 0.188 0.4375 0.50000 IN 42.0
167-5060
FP-2523-7 BENT TIP RWMA Class 2 - C18200 5RW A 2.18750 0.62500 0.25 0.4375 0.62500 IN 42.0
167-5065
FP-2430-8 BENT TIP RWMA Class 2 - C18200 4RW A 3.00000 0.50000 0.188 0.5000 0.50000 IN 30.0
167-5070
FP-2530-8 BENT TIP RWMA Class 2 - C18200 5RW A 3.00000 0.62500 0.25 0.5000 0.62500 IN 30.0
167-5220
FP-2527-15 BENT TIP RWMA Class 2 - C18200 5RW A 2.43750 0.62500 0.25 0.9375 0.62500 IN 60.0
167-5540
FP-2532-10 BENT TIP RWMA Class 2 - C18200 5RW A 3.12500 0.62500 0.25 0.6250 0.62500 IN 35.0
170-4268
SE-4268 BENT TIP RWMA Class 2 - C18200 5RW Spade 2.50000 0.75000 0.680 x 0.310 0.7500 0.37500 IN 70.0
170-4269
SE-4269 BENT TIP RWMA Class 2 - C18200 5RW Spade 2.69000 0.75000 0.563 x 0.438 0.8125 0.37500 IN 60.0
FP-2428-9.5 BENT TIP FP-2423-7 BENT TIP FP-2523-7 BENT TIP FP-2430-8 BENT TIP FP-2530-8 BENT TIP FP-2527-15 BENT TIP FP-2532-10 BENT TIP SE-4268 BENT TIP SE-4269 BENT TIP
